2024-03-18 ミシガン大学
＜関連情報＞
- https://news.umich.edu/bridge-in-a-box-unlocking-origamis-power-to-produce-load-bearing-structures/
- https://www.nature.com/articles/s41467-024-46667-0
大型モジュール式で均一な厚さの折り紙に触発された適応可能な耐荷重構造体 Large-scale modular and uniformly thick origami-inspired adaptable and load-carrying structures
Yi Zhu &Evgueni T. Filipov
Nature Communications Published:15 March 2024
DOI:https://doi.org/10.1038/s41467-024-46667-0
Abstract

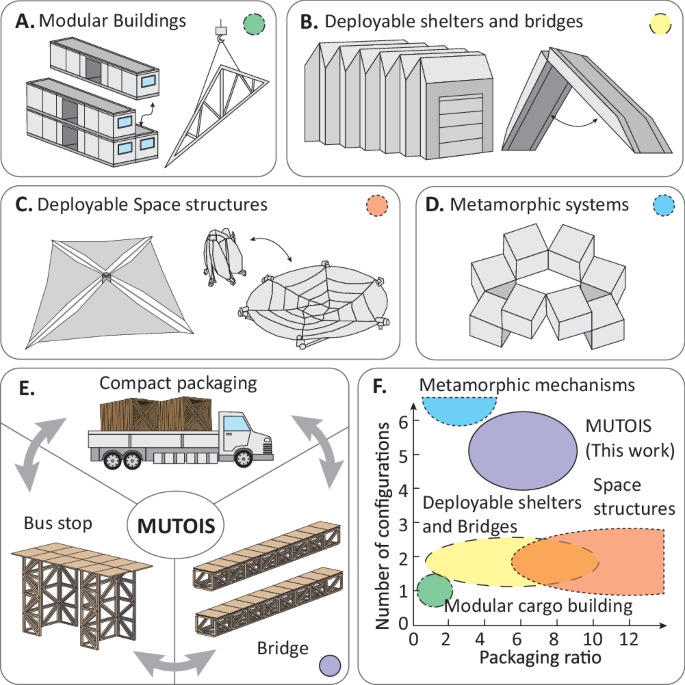

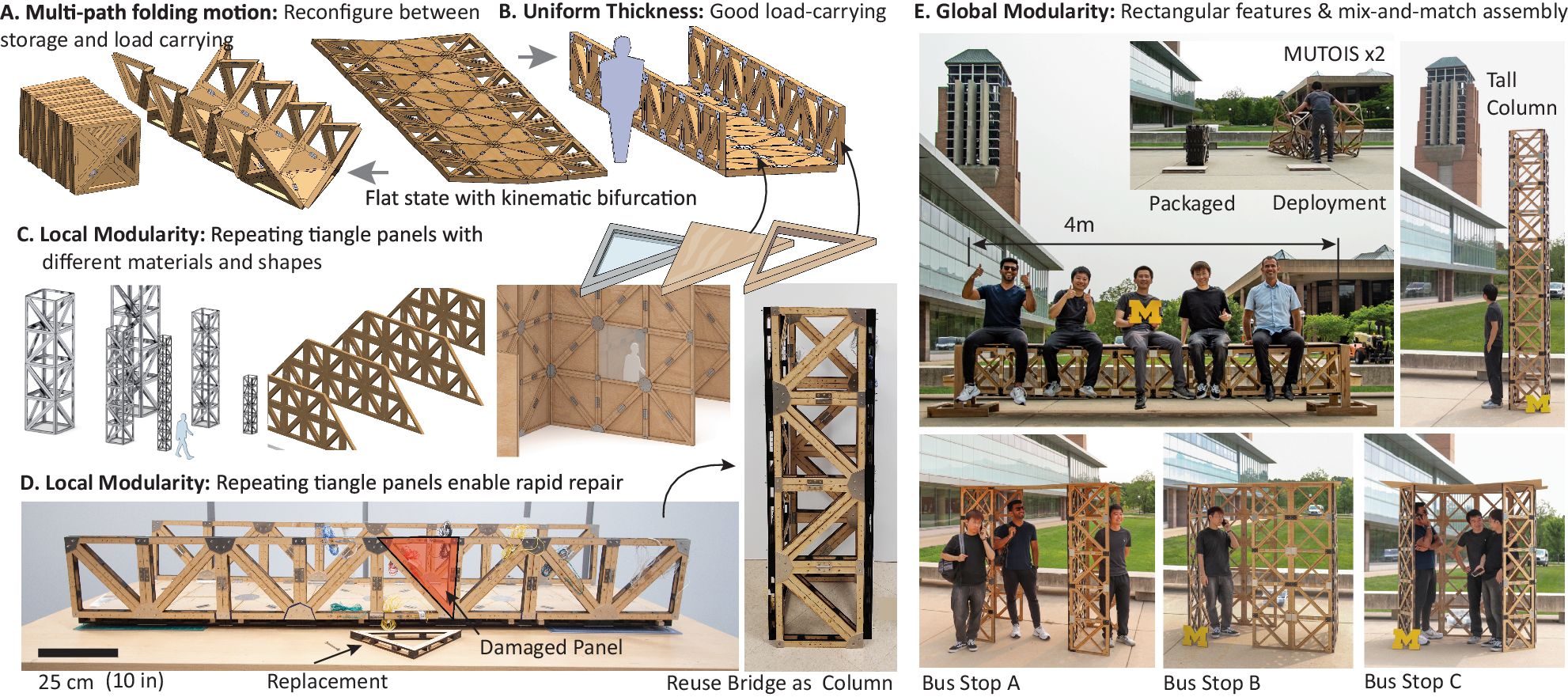

Existing Civil Engineering structures have limited capability to adapt their configurations for new functions, non-stationary environments, or future reuse. Although origami principles provide capabilities of dense packaging and reconfiguration, existing origami systems have not achieved deployable metre-scale structures that can support large loads. Here, we established modular and uniformly thick origami-inspired structures that can deploy into metre-scale structures, adapt into different shapes, and carry remarkably large loads. This work first derives general conditions for degree-N origami vertices to be flat foldable, developable, and uniformly thick, and uses these conditions to create the proposed origami-inspired structures. We then show that these origami-inspired structures can utilize high modularity for rapid repair and adaptability of shapes and functions; can harness multi-path folding motions to reconfigure between storage and structural states; and can exploit uniform thickness to carry large loads. We believe concepts of modular and uniformly thick origami-inspired structures will challenge traditional practice in Civil Engineering by enabling large-scale, adaptable, deployable, and load-carrying structures, and offer broader applications in aerospace systems, space habitats, robotics, and more.
